What are Protection Relays used for?

Protection relays are electrical devices used to detect abnormal operating conditions in electrical systems and initiate appropriate actions to protect equipment, prevent damage, and ensure the safety of personnel and equipment. These relays are an essential component of power distribution and industrial systems. Here are some key purposes and applications of protection relays:

1. Overcurrent Protection:

Protection relays are commonly used to detect excessive current levels in electrical circuits. They monitor the current flowing through the system and trip circuit breakers or other protective devices if the current exceeds a predetermined threshold. Overcurrent relays are critical in preventing damage to equipment and preventing electrical fires caused by excessive current.

2. Differential Protection:

Differential relays are used to protect transformers, generators, motors, and other equipment by continuously comparing the currents entering and leaving the equipment. If a fault or imbalance is detected, indicating a potential fault within the protected zone, the relay operates to isolate the faulty section of the system.

3. Overvoltage and Undervoltage Protection:

These relays monitor the voltage levels in electrical systems. Overvoltage relays detect excessive voltage, such as during lightning strikes or switching surges, and initiate protective actions to prevent equipment damage. Undervoltage relays detect voltage drops below a safe operating range and can be used to initiate backup power sources or shutdown non-critical equipment.

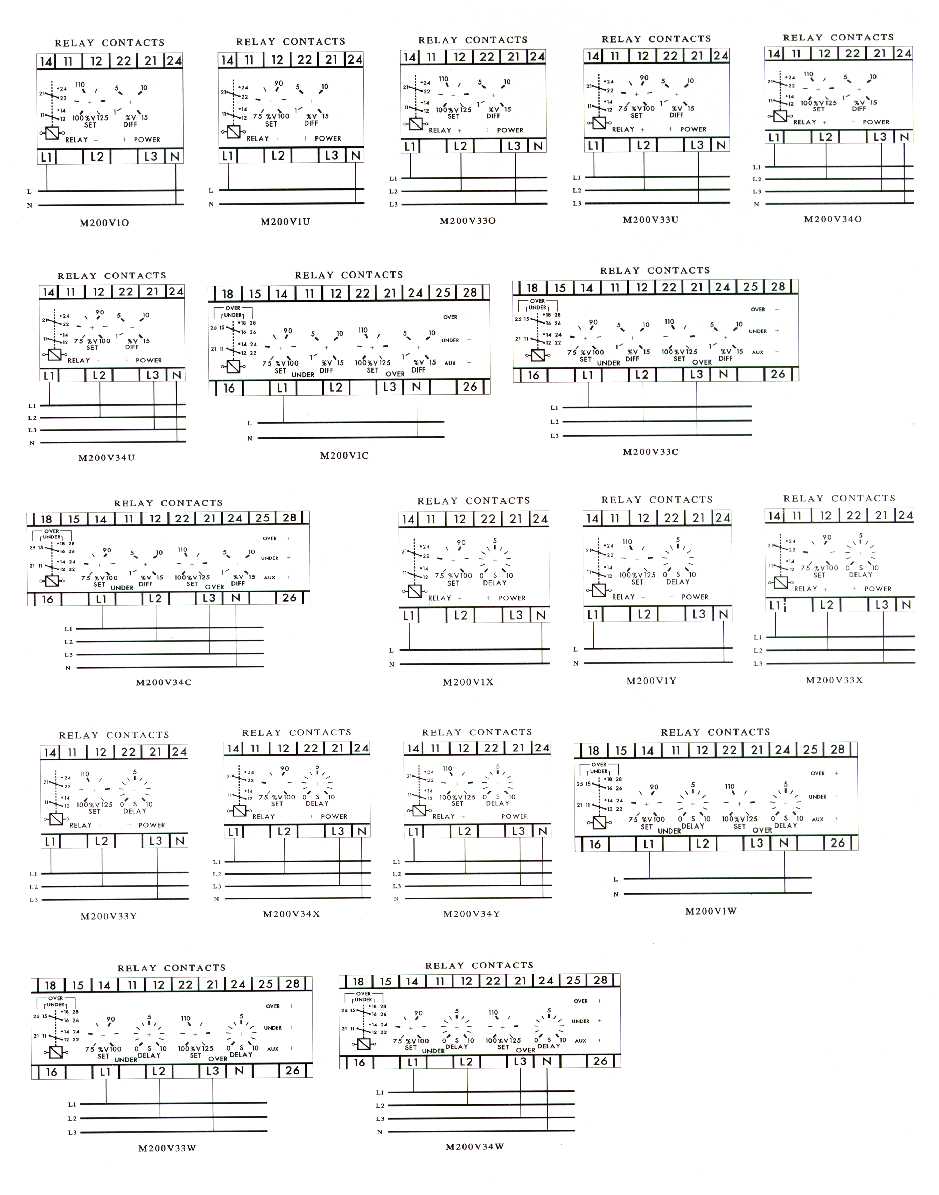

The above can be monitored using the following products. M200-V1O, M200-V1U.

4. Motor Protection:

Motor protection relays are specifically designed to safeguard electric motors from faults and abnormal operating conditions. They monitor motor parameters such as current, voltage, temperature, and phase imbalances. Motor protection relays can detect issues like overloads, phase failures, over/under voltage, and over/under frequency, and respond by tripping the motor or initiating corrective actions.

5. Generator Protection:

Generators require protection against faults and abnormal conditions to prevent damage and maintain stable operation. Generator protection relays monitor parameters like voltage, current, frequency, and rotor conditions. They detect faults such as overloads, under-frequency, over-excitation, and loss of synchronization, and take appropriate actions to protect the generator.

These are just a few examples of the wide range of protection relays and their applications. Protection relays are critical components of electrical systems, providing an essential layer of safety and protection by swiftly detecting faults and initiating appropriate responses to prevent equipment damage, electrical hazards, and system failures.
