F3PBM
|
Description
A range of ammeters and voltmeters with tough moving magnet or polarised moving iron movements designed for low cost indication of d.c. or rectified a.c.
Application
Domestic and automotive battery chargers and d.c power supplies.
Technical Specification
| Standard Range | 0/4A, 0/5A, 0/6A, 0/8A, 0/10A, 0/12A, |
| 0/15A, 0/20A | |
| Calibration Accuracy | ± 8% of f.s.d |
| Movement | Moving magnet |
| Temperature range | -20ºC to +40ºC |
| Terminations | 6.3mm spades |
| Fixing | Snap into panel |
| Options | Black or white dial |
| Black or white case | |

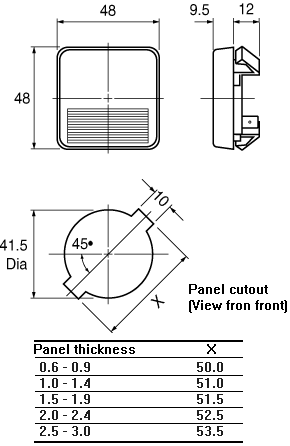

Dimensions
